EPH V228P 28mm 2 Port Motorised Valve Body
EPH V228P 28mm 2 Port Motorised Valve Body

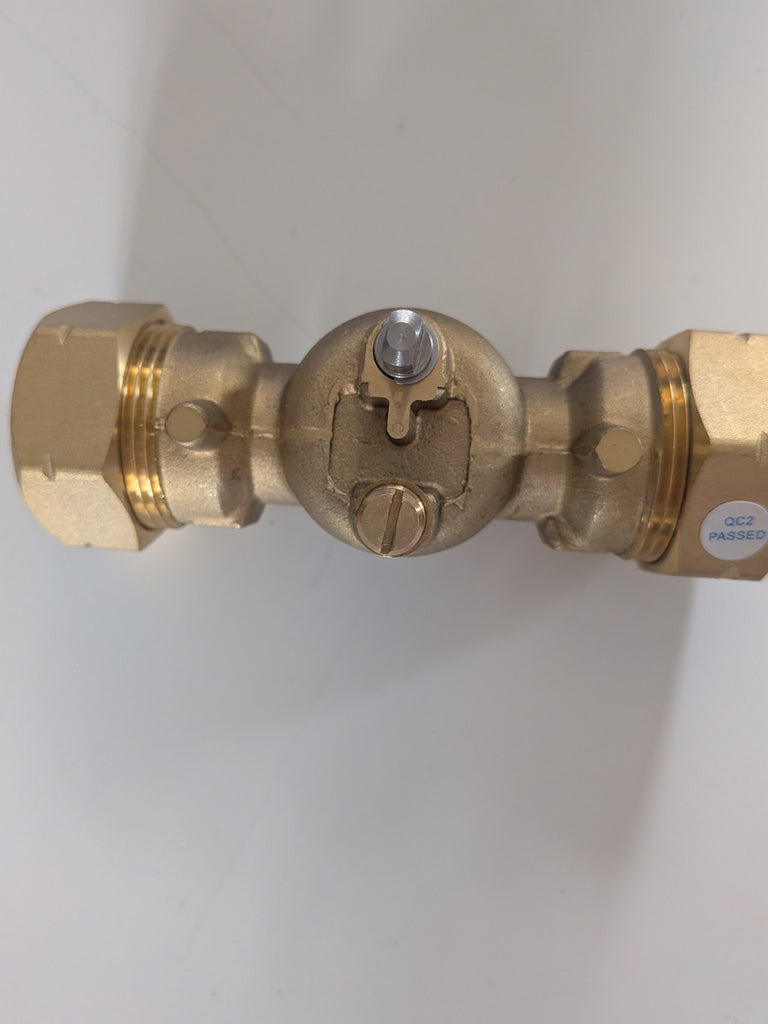

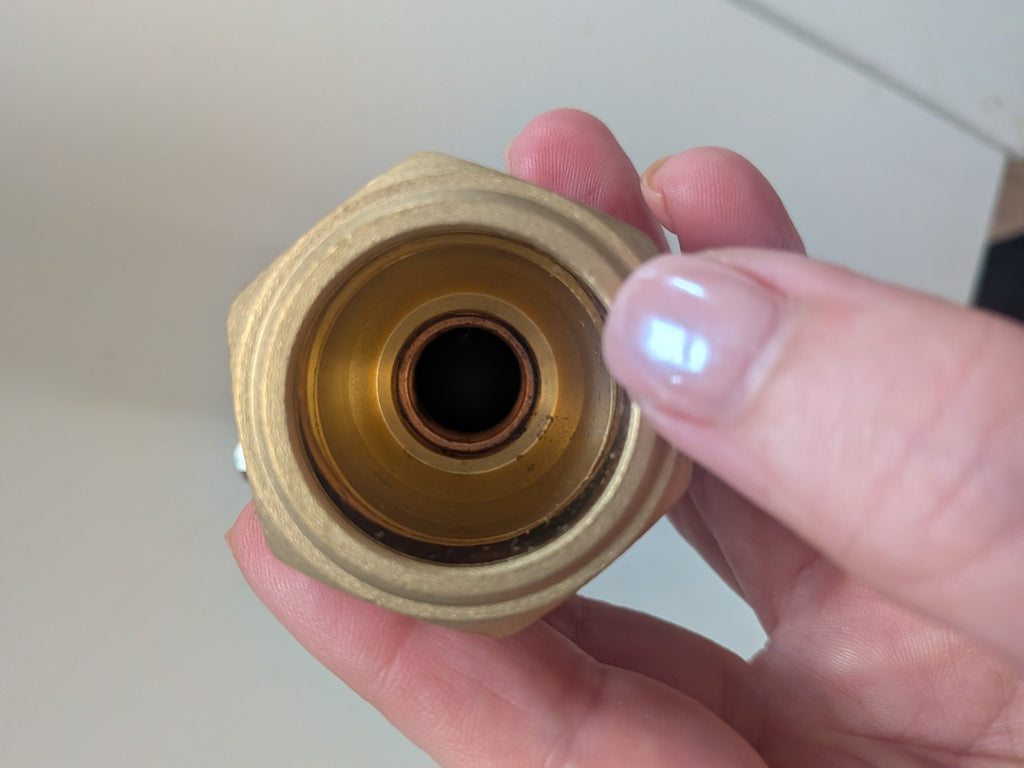

Brass 2-port valve body for central-heating and hot-water zoning applications. Supplied with the 28mm compression nuts shown in the photographs.
Please note: this listing is for the valve body only. The electrical actuator head is not included.
Product details
- Brand: EPH Controls
- Model: V228P
- Connection size: 28mm compression
- Valve type: 2 port

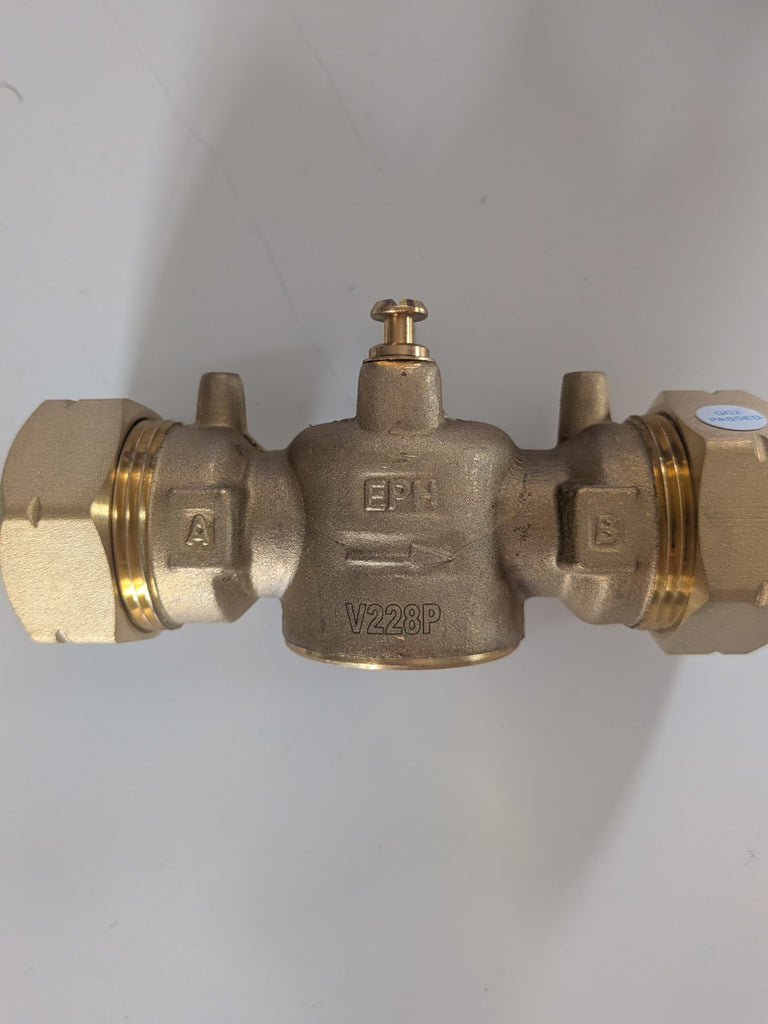

- Ports marked A and B
- Flow direction marked on the valve body
- Brass construction
Condition
New old stock / unused. Minor cosmetic storage or handling marks may be present, as shown in the photographs. A QC passed label is visible on the fitting.
Included
- EPH V228P valve body
- Two 28mm compression nuts as pictured
Replacement and substitute guidance
The safest direct replacement is another EPH V228P 28mm 2-port valve body. For a complete-valve replacement, installers may also compare equivalent 28mm 2-port motorised valves from Honeywell/Resideo, Drayton, Danfoss and similar heating-control manufacturers.
Compatibility is not guaranteed from pipe size alone. Before ordering, compare the face-to-face length, compression size, flow direction, spindle or actuator coupling, operating voltage and wiring requirements. Actuator heads from other brands should not be assumed to fit this body.
Please check the model markings, dimensions and photographs carefully. Installation should be carried out by a suitably qualified heating engineer.
